Mini Electric Cylinder Push Rod Micro Linear Thrust Actuator DC12V 6.4-188N Reciprocating Motor Remote Automation Mini Elevator
Mini Electric Cylinder Push Rod Micro Linear Thrust Actuator DC12V 6.4-188N Reciprocating Motor Remote Automation Mini Elevator
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: NONE
Certification: ce
Choice: yes
Color: Silver
Does it include a Battery?: No
Does it include wireless functionality?: No
High-concerned chemical: None
Model Number: ARF08
Noise: 50DB
Origin: Mainland China
Output Power: ＜18.65
Output Voltage: 6V/12V/24V
Product type 1: Electric Push Rod
Product type 10: push rod motor
Product type 11: telescopic pull rod motor
Product type 13: Reciprocating electric push rod
Product type 14: telescopic rod motor
Product type 15: small elevator
Product type 16: Micro Linear Thrust Actuator
Product type 17: Mini electric cylinder push rod
Product type 18: reciprocating motor
Product type 2: Mini Telescopic Rod
Product type 3: Miniature electric actuator
Product type 4: Push-pull Motor
Product type 5: 6V Linear Motor
Product type 6: 12V Linear Motor
Product type 7: 24VLinear Motor
Protect Feature: IP54
Protection level: IP54
Torque: 6.4/19.2/32/64/96/128/188N,6.4N/19.2N/32N/64N/96N/128N/188N
Type: Micro Motor
Voltage(V): DC6V/12V/24V
Working environment temperature: 0°C~40°C
semi_Choice: yes
1* Mini Linear Actuator
PS:If you need 3D model drawings, please contact us

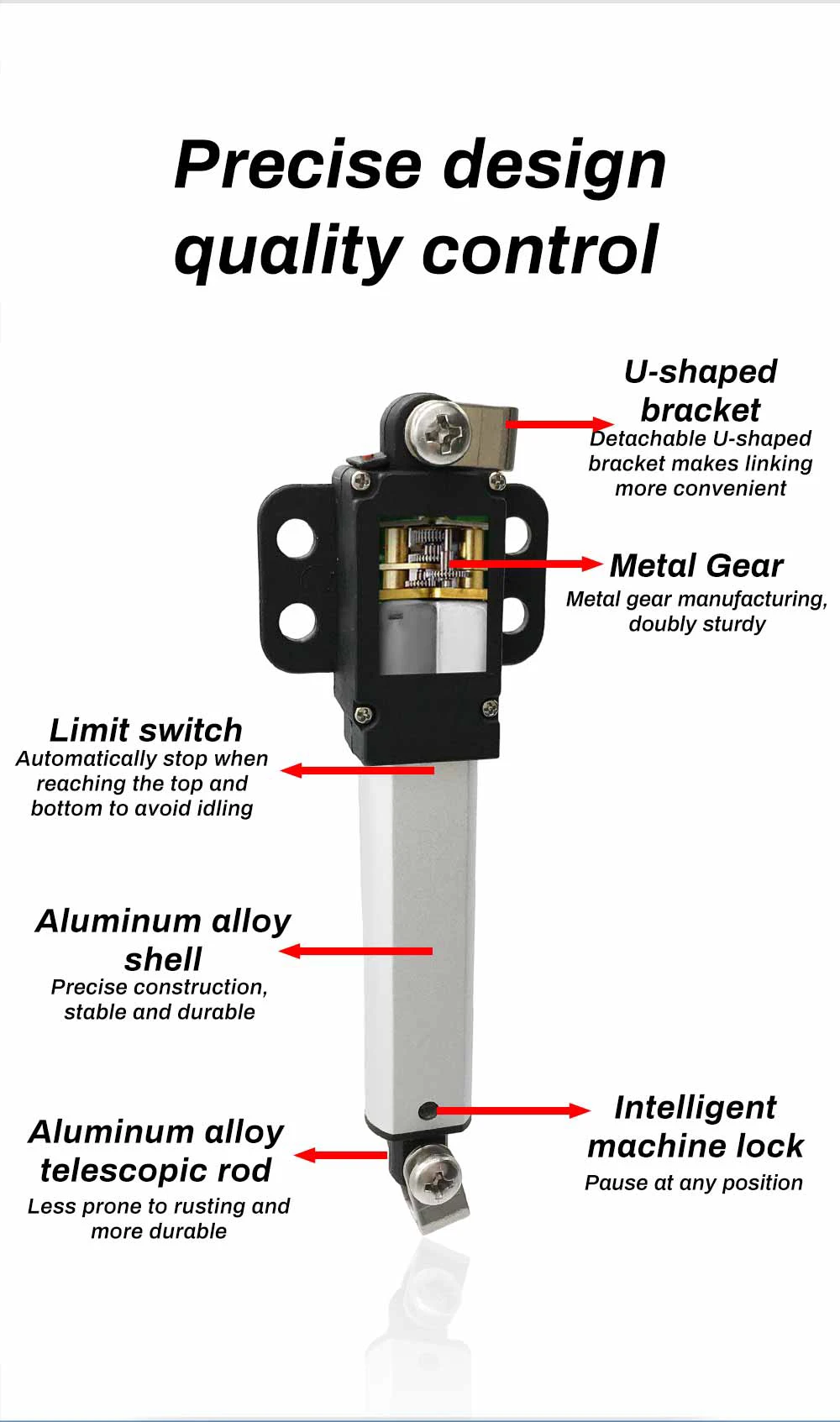

Working principle: The expansion and contraction of the product are controlled by the positive and negative poles of the motor
(i.e. the positive pole is extended or the negative pole is retracted), and the direction of expansion and contraction can be changed when switching the negative pole wiring
Voltage: DC12V(If you need DC6V/24V, please contact us)
Effective travel distance: 10-300mm (if you need customization, please contact us, starting from 10)
Operating environment temperature: -20 ℃+75 ℃
Protection level:IP54
Noise: Below:35dB
Operating Frequency:15%
Scope of application: TV lift table, lift frame, Massage chair, medical bed or chair, automobile, automation equipment, electric sofa, smart home, etc
Technical parameter list | |||||||
Input voltage |
DC 6V/12V/24V |
||||||
Carrying capacity |
6.4/N |
19.2/N |
32/N |
64/N |
96/N |
128/N |
188/N |
Speed |
150mm/s |
50mm/s |
30mm/s |
15mm/s |
9.5mm/s |
7mm/s |
5mm/s |
Reduction Ratio |
1:10 |
1:30 |
1:50 |
1:100 |
1:150 |
1:230 |
1:298 |

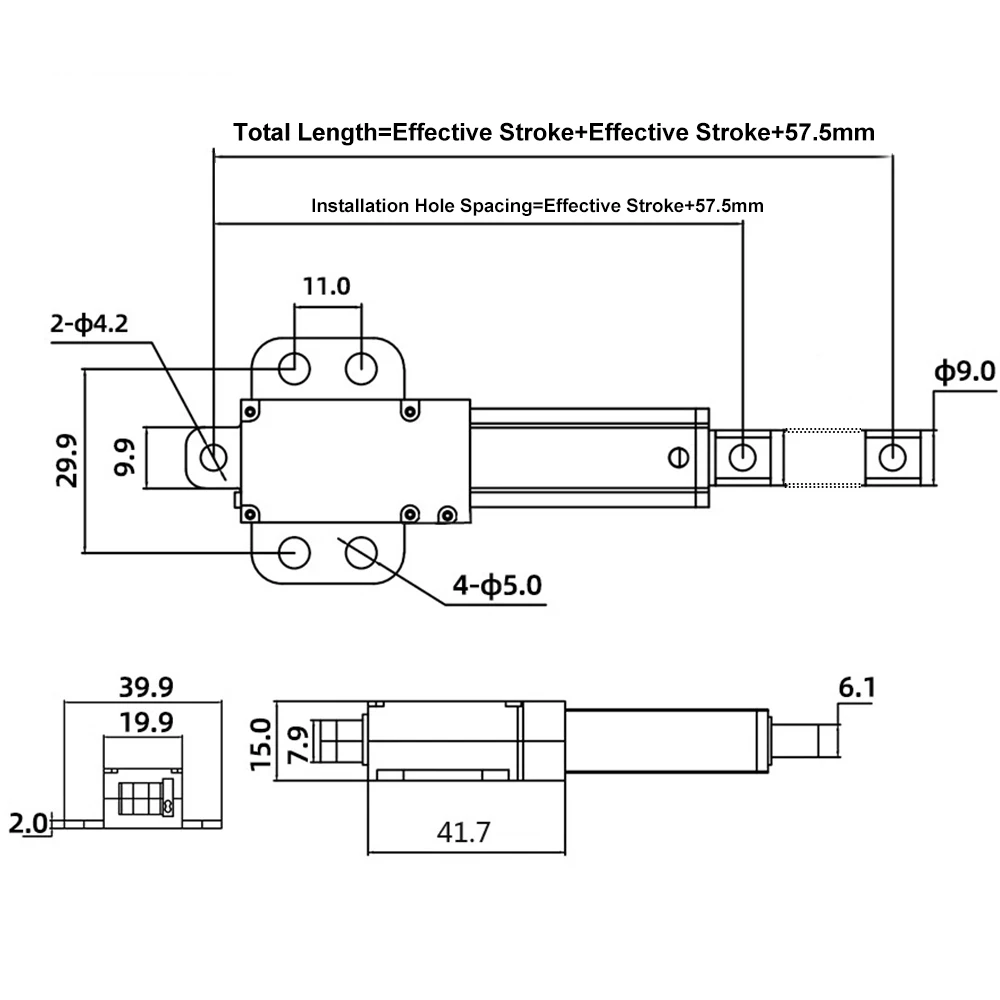

Minimum Mounting Sizemm |
L=S+57.5 (Stroke:S<=100); L=S+63(S>100) |
||||||
Stroke |
10-300mm |
||||||
Protection Grade |
54IP |
||||||
Operating Work System |
15% |
||||||
Noise |
50db |
||||||
Service Life |
30000 times |
||||||
Built-in limit Switch |
10-300 customized according to demand, non adjustable after leaving the factory |
||||||
No-Load Current |
0.1-0.05A |
||||||
Rated Load Current |
0.7-0.2A |
||||||
Travel Limit |
Built-in |
||||||
