Mini N20 Motor DC 3.7V 5V 6V 40800RPM High Speed Carbon Brush Motor Mini 10mm*12mm Strong Magnetic Engine for RC Slot Car Toy

Mini N20 Motor DC 3.7V 5V 6V 40800RPM High Speed Carbon Brush Motor Mini 10mm*12mm Strong Magnetic Engine for RC Slot Car Toy

$17.52 USD
$0.00 USD $17.52 USD
Sale Sold out
Shipping calculated at checkout.

SPECIFICATIONS

Brand Name: NONE

Certification: CE

Choice: yes

Commutation: Brush

Construction: Permanent Magnet

Does it include a Battery?: No

Does it include wireless functionality?: No

Efficiency: IE 1

High-concerned chemical: None

Model: N20

Model Number: FK-N20-1567/22 Motor

Motor Size: 10*12*15.3mm

Origin: Mainland China

Output Power: ＜18.65

Protect Feature: Totally Enclosed

Shaft Length: 6.5 MM

Shaft diameter: 1mm

Speed: 34000RPM

Type: Micro Motor

Voltage: DC 5V

semi_Choice: yes

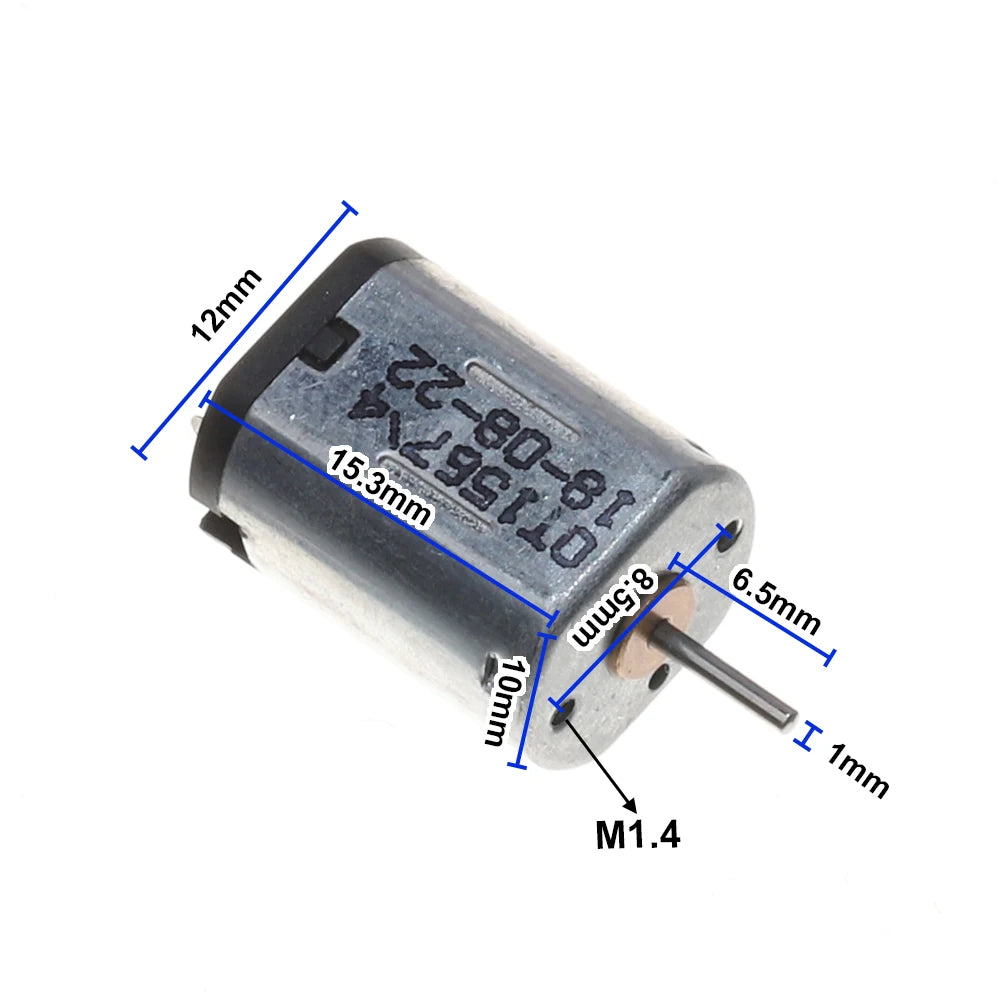

Specification:

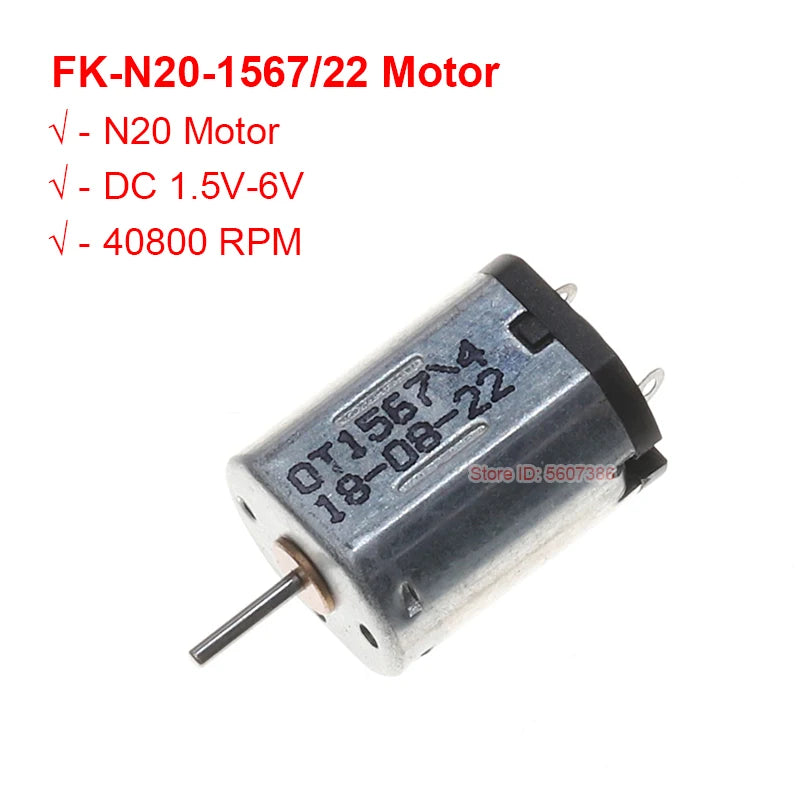

Model: FK-N20-1567/22

Motor size: 10*12 MM

Motor height: 15.3 MM (without output shaft)

Output shaft diameter: 1.0 MM

Output shaft length: 6.5 MM

Test data:
----------------------------

Voltage: 1.5V       No-load current: 0.14 A        No-load speed: 9200RPM
Voltage: 3.7 V      No-load current: 0.17 A        No-load speed: 25200RPM
Voltage: 5.0 V      No-load current: 0.18 A        No-load speed: 34000RPM
Voltage: 6.0 V      No-load current: 0.20 A        No-load speed: 40800RPM

----------------------------
Motor weight: 6g

Package Include:
1PC * Motor
