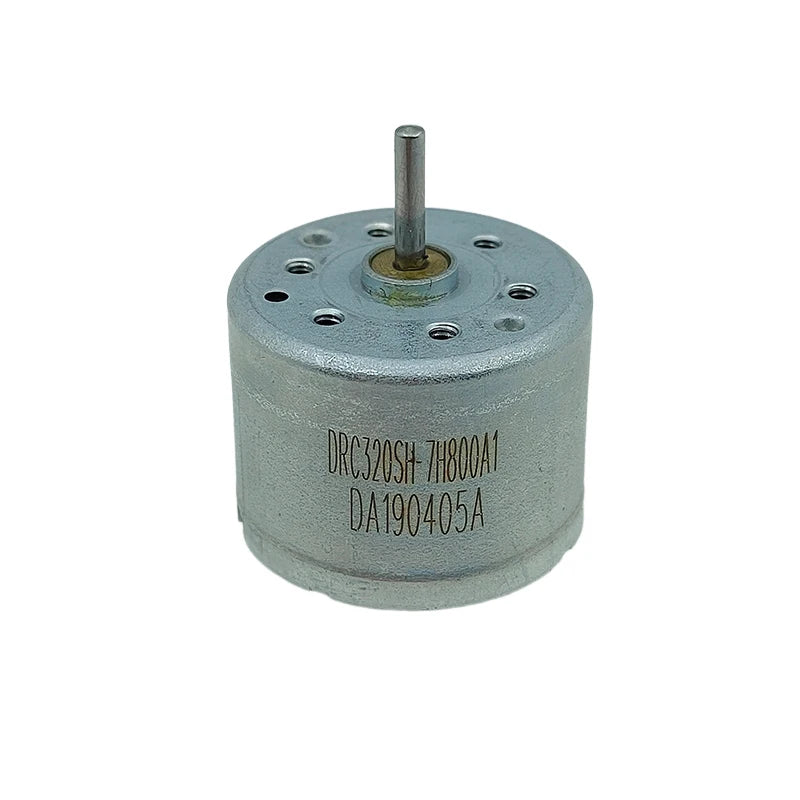

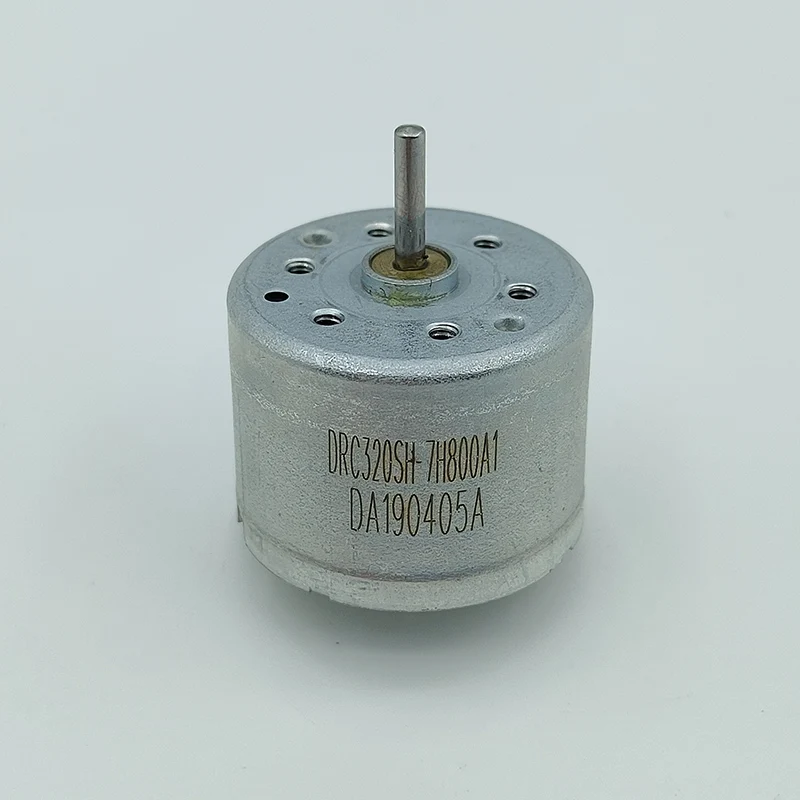

RC320SH RF-320CH Mini 24mm Electric Motor DC 6V 12V 15V 18V 24V 9500RPM Micro Mute Round Spindle Motor DIY Hobby Toy Sweeper
RC320SH RF-320CH Mini 24mm Electric Motor DC 6V 12V 15V 18V 24V 9500RPM Micro Mute Round Spindle Motor DIY Hobby Toy Sweeper
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: NONE
Certification: NONE
Choice: yes
Commutation: Brush
Construction: Permanent Magnet
Does it include a Battery?: No
Does it include wireless functionality?: No
Efficiency: IE 1
High-concerned chemical: None
Model Number: Mini 320 Motor
Model number: DRC320SH-7H800A1
Motor diameter: 24.2mm
Motor height: 18.1mm
No-load speed: 6000RPM
Origin: Mainland China
Output Power: ＜18.65
Output shaft diameter: 2mm
Protect Feature: Explosion-proof
Rated voltage: DC 15.0V
Speed range: 2200-9500RPM
Suitable voltage: DC 6.0V-24.0V
Type: Micro Motor
Use: Home Appliance
Weight: 28g
semi_Choice: yes

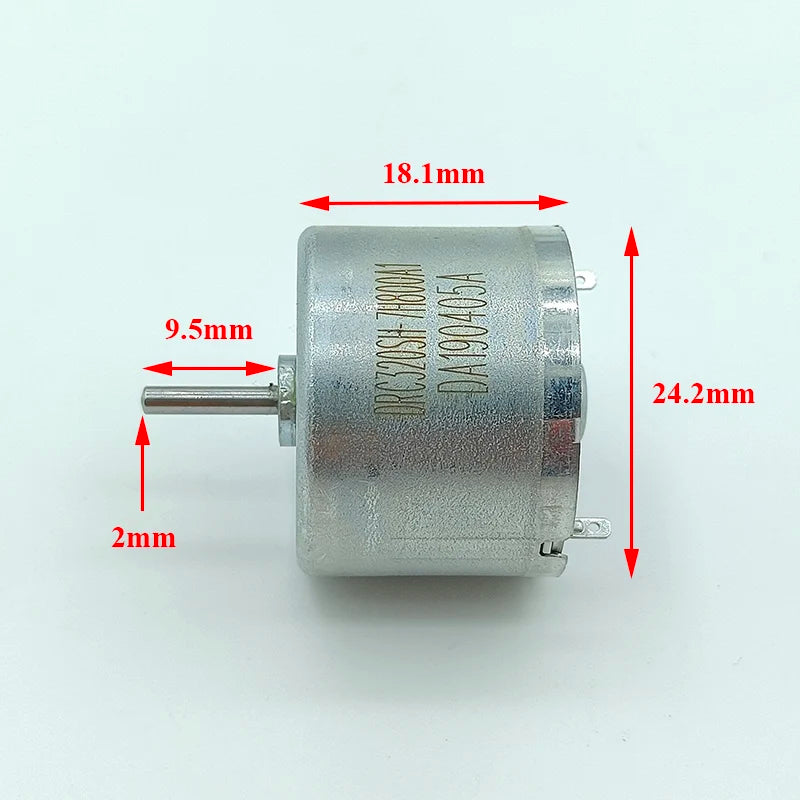

Specification:
1.Model: DRC320SH-7H800A1
2.Motor diameter: 24.2mm
3.Motor height: 18.1mm
4.Output shaft diameter: 2mm
5.Output shaft length: 9.5mm
6.Weight: 28g
7.Rated voltage: DC 15.0V
8.Suitable voltage: DC 6.0V-24.0V
9.Test data:
  Voltage:6.0V   No-load speed:2200RPM  Current:10mA
  Voltage:9.0V   No-load speed:3400RPM  Current:12mA
  Voltage:12.0V  No-load speed:4600RPM  Current:13mA
  Voltage:15.0V  No-load speed:6000RPM  Current:14mA
  Voltage:18.0V  No-load speed:7200RPM  Current:15mA
  Voltage:24.0V  No-load speed:9500RPM  Current:20mA
=========================
Package List:
Motor x 1PCS
