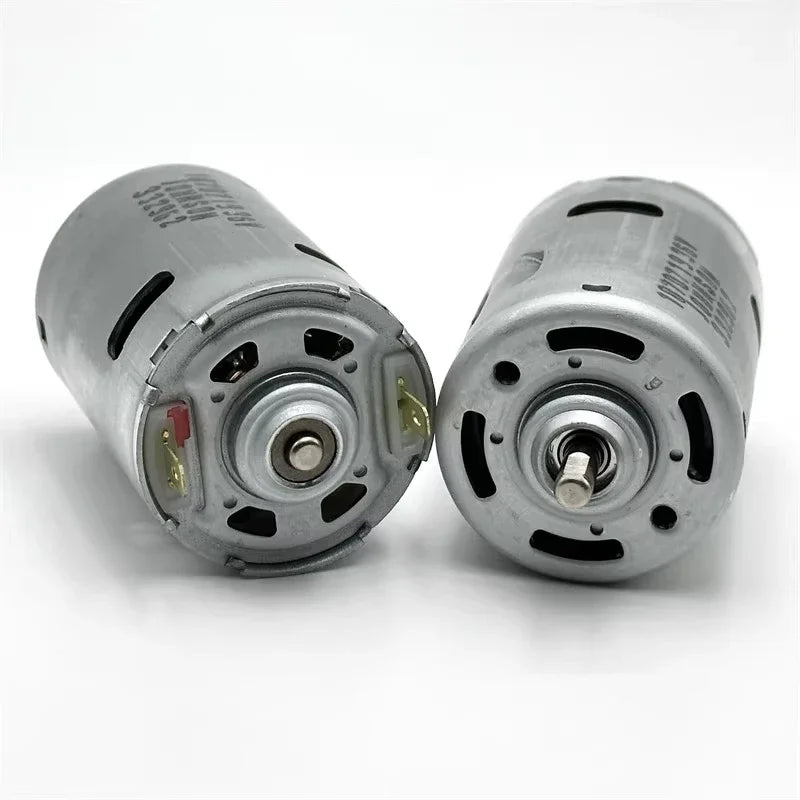

RS-755 1070719 Micro Electric Motor 42mm Front Ball Bearing DC 6V 12V 18V 24V 4750RPM for DIY Hobby Toy Model
RS-755 1070719 Micro Electric Motor 42mm Front Ball Bearing DC 6V 12V 18V 24V 4750RPM for DIY Hobby Toy Model
Couldn't load pickup availability
SPECIFICATIONS
Brand: JOHNSON MOTOR
Brand Name: NONE
Certification: NONE
Choice: yes
Commutation: Brush
Construction: Permanent Magnet
Does it include a Battery?: No
Does it include wireless functionality?: No
Efficiency: IE 1
High-concerned chemical: None
Model: RS-755 Motor
Model Number: RS-755 Motor
Motor diameter: 42.2mm
Motor height: 60mm
Origin: Mainland China
Output Power: ＜18.65
Output shaft diameter: 5.0mm (Flat shaft 4.2mm)
Protect Feature: Explosion-proof
Speed range: 1100RPM-4750RPM
Suitable voltage: DC 6V-24V
Type: Micro Motor
Use: Home Appliance
Weight: 268g
semi_Choice: yes
Specification:
1.Brand: JOHNSON MOTOR
2.Model: RS-755 Motor (Front Ball Bearing)
3.Motor diameter: 42.2mm
4.Motor height: 60mm
5.Output shaft diameter: 5.0mm (Flat shaft 4.2mm)
6.Output shaft length: 10.5mm (include step height: 16.5mm)
7.Weight: 268g
8.Suitable voltage: DC 6V-24V
9.Test data:
Voltage:6VNo-load speed:1100RPM Current:120mA
Voltage:12V No-load speed:2350RPM Current:140mA
Voltage:18V No-load speed:3550RPM Current:160mA
Voltage:24V No-load speed:4750RPM Current:180mA
=========================
Package List:
Motor x 1PCS
