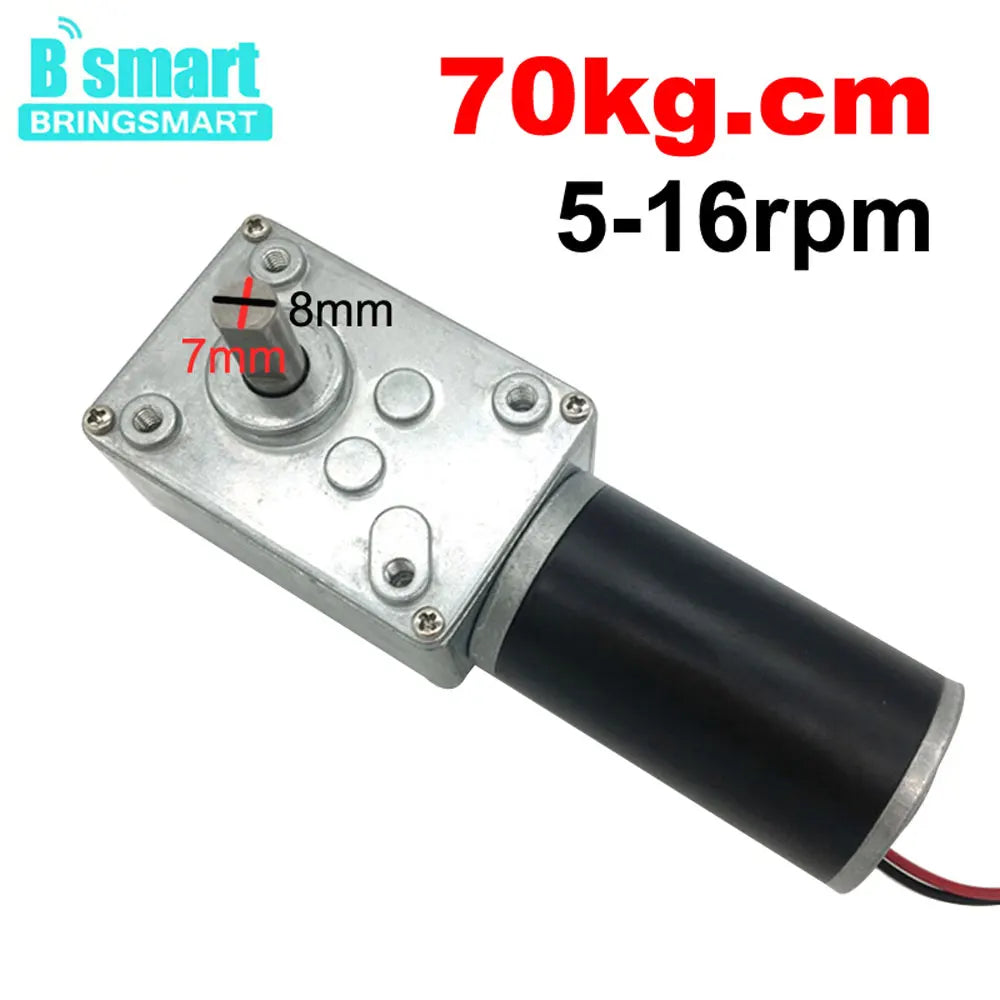

Self-Locking Worm Gear Motor - 12V/24V DC, 12-470 rpm, Reversible

Self-locking worm gear motor, 12V or 24V DC, with output speeds from 12 to 470 rpm depending on the gear ratio. Reversible.

Details

• Voltage: 12V or 24V DC

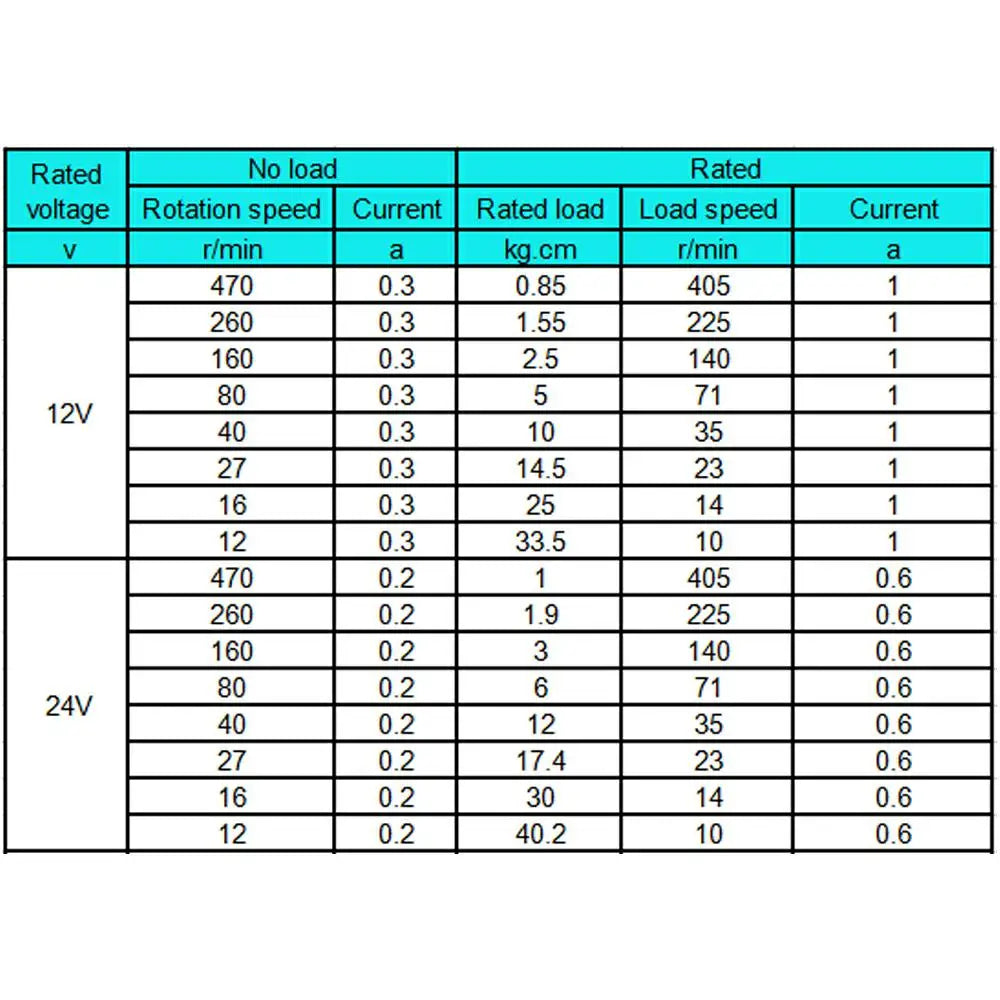

• Output speed: 12 – 470 rpm depending on gear ratio
• Worm gearbox — self-locking, so the output holds its position when power is removed
• Reversible: swap the two motor wires to change direction

Good to know

• Self-locking means the load cannot back-drive the motor. That is useful for lifts, actuators and window openers — but it also means you cannot turn the output by hand, so plan a manual override if you need one.
• Choose the gear ratio by the torque you need first. Lower rpm means more torque; the ratio cannot be changed once fitted.
• Check the voltage option — a 24V motor on 12V runs at roughly half speed with much less torque.
• Worm gearboxes are less efficient than spur or planetary types. Expect more heat and more current draw for the same output.
• Speeds are no-load. Figures are the supplier's and have not been independently tested.

In the box: 1 x gear motor. Mounts, couplings and controllers are not included.
